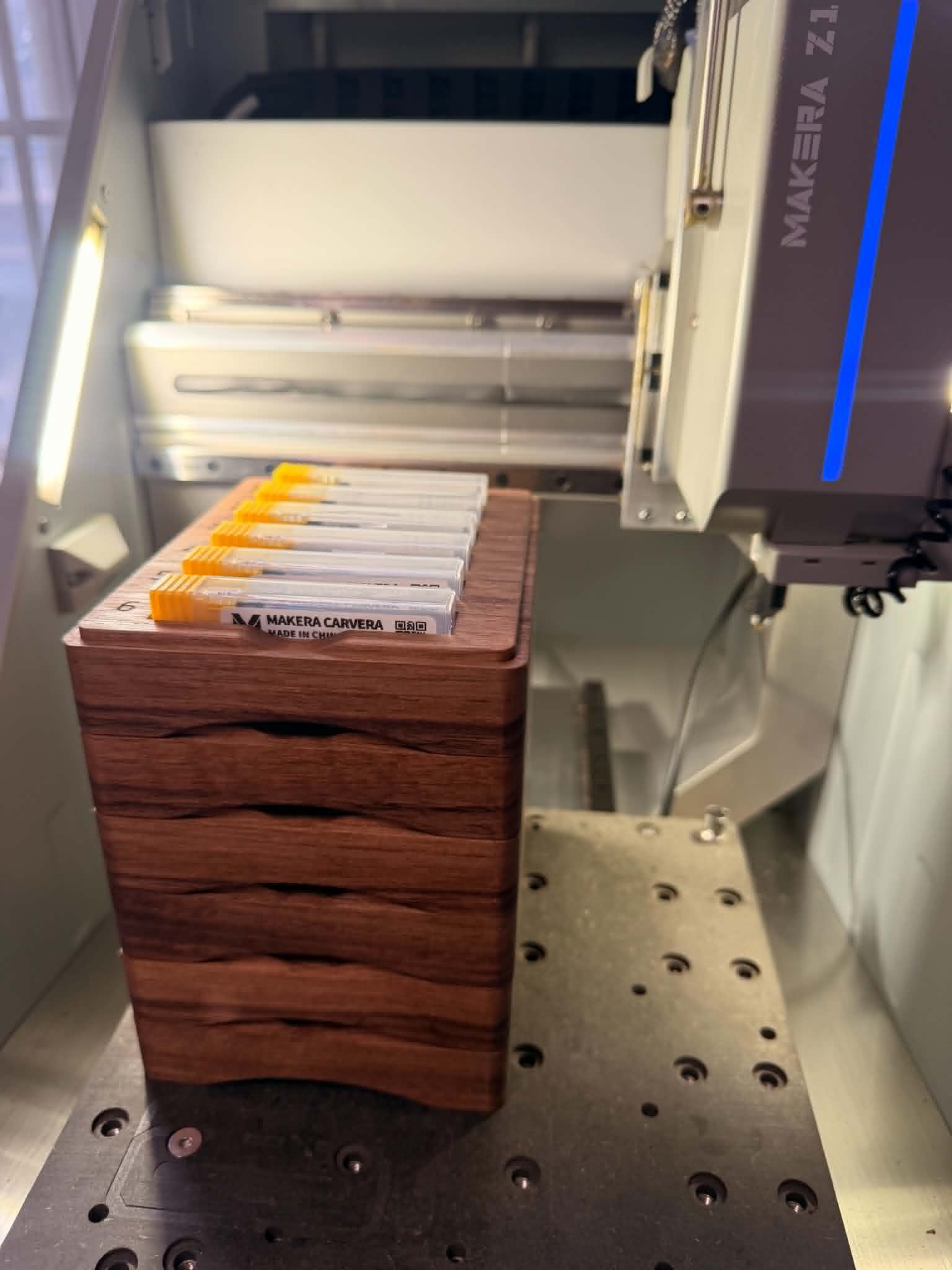

Modular Stackable 6-Bit CNC Tool Trays (2-Piece Assembly)

Keep your workspace clean, organized, and scalable with these modular 6-bit CNC tool trays. Designed for maximum shop flexibility, these trays stack neatly on top of one another to save valuable bench space while keeping your active bit inventory organized and right where you need it.

Whether you need a single tray next to your controller for active jobs or a stacked tower of specialized bits, this system grows right along with your shop needs.

Included Files & Machining Process

This project is split into a 2-Job process.

70mm Top: Optimized specifically for standard 70mm protective bit tubes/cases.
85mm Top: Designed with extra clearance to fit longer 85mm bit cases.
Bottom File (Universal Base): Pairs seamlessly with either Top file to form a solid, stackable unit.

Machining Step-by-Step:

Set the stock against the fence and secure with double-sided wood tape; remove the fence, and machine your chosen Top file (70mm or 85mm version).
Flip the material, align flush against the fence, and machine the Bottom base file as the final step.

Key Features

Interlocking Stackable Design: Precision alignment features allow completed trays to nest securely on top of one another without slipping or tipping over.
6 High-Visibility Bit Slots: Holds up to 6 bits in their protective cases per tray, keeping tool specs visible and cutting edges protected.
Space-Saving Vertical Storage: Expand your organized bit storage vertically instead of cluttering up your limited workbench footprint.
Easy-Grab Layout: Generous spacing between pockets ensures quick, effortless bit swaps during job setups and tool changes.
